The Most Durable High-Chrome Grinding Balls for Cement Mills

In the relentless world of cement production, where every hour counts toward meeting skyrocketing global demand, the choice of grinding media can make or break your operation’s efficiency. Picture this: a bustling cement plant in the heart of the UAE, where dust clouds swirl like desert storms, and ball mills hum around the clock to pulverize clinker into fine powder.

Get one wrong move in selecting your grinding balls, and you’re looking at sky-high maintenance costs, unplanned shutdowns, and a hole in your profit margin. That’s where high chrome grinding balls enter the scene as the unsung heroes—strong, reliable, and long-term players. If you’re grappling with wear rates that seem to go higher than cement prices, hang in there.  In this article from SFA we’ll delve into the details of why these balls are the most durable high chrome grinding balls for cement mills, based on lessons learned from across the industry.

What Makes High-Chrome Grinding Balls the Gold Standard?

Let us start at the start, shall we? High chrome grinding balls are not your average steel balls tossed into a mill. They are carefully forged or cast marvels, packed with 10-30% chromium content that renders them wear-resistant powerhouses. This alloying is not by accident; it is a considerate nod to cement grinding’s unforgiving demands, where clinker and raw materials grind down lesser media like candy. Look at the composition: a low-alloy steel matrix packed with high chromium, often blended with elements like molybdenum for extra toughness. The result? Balls with hardness levels over 60 HRC (Rockwell C scale), far beyond standard carbon steel options. It has a low rate of wear, even as little as 20-50 grams per ton of ore ground, say grinding media specialists, which makes them a smart option for the serious-minded durability.

Why does it matter in a cement mill? Simple: these mills grind in two stages—approximately grinding raw materials like limestone and clay, and grinding clinker finely. In both, the balls undergo impact and abrasion repeatedly. Most durable high chrome grinding balls for cement mills hold up well in this department because of their microstructure—a martensite matrix with dispersed carbides—that is resistant to cracking and spalling. We’ve seen it ourselves: one customer in Saudi Arabia changed out their worn low-chrome balls and achieved 15% more mill uptime with this robust design. So, how do you know high chrome grinding balls are right for your plant? It boils down to your throughput goals and budget. If contamination-free grinding is a priority (and in cement, it usually is so there are no impurities in the product), these balls minimize iron pickup, which keeps your mix pure.

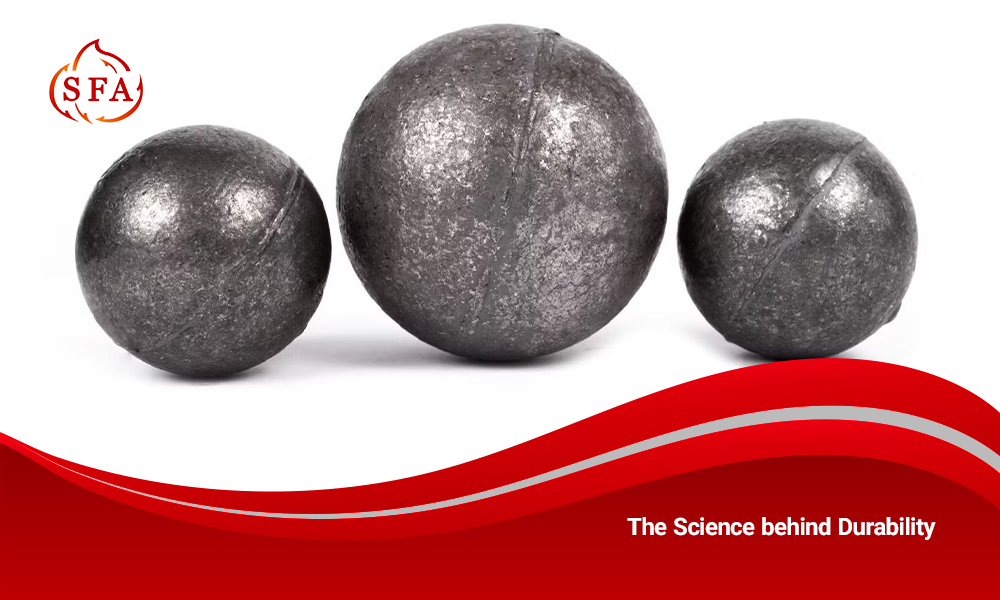

The Science behind Durability: Hardness, Impact, and Wear Resistance

Drilling down, then, to talk specifications. Grinding ball longevity is not hype; it can be quantified. Cement grinding high chrome steel balls typically run between 20mm and 150mm in diameter, with a surface hardness of 62-65 HRC and a core hardness of 58-62 HRC. That gradient—hard outside, tougher inside—absorbs the shocks without cracking, a common cause of death in high-impact zones. Wear resistance is the real hero, though. The chromium forms chrome carbides that act like little shields to fight abrasion. In industry tests, these balls 2-3 times outlast forged low-chrome competitors in cement applications. Why? Their low wear rate high chrome balls cement mill efficiency is due to less fragmentation; broken balls are fewer, so there is consistent particle size distribution and smoother operations.

Impact resistance ties it all together. Cement mills aren’t gentle—balls drop from heights, hammering ore at speeds that’d plummet your stomach.The most durable high chrome grinding balls for cement mills handles this with a fracture toughness of over 10 MPa·m½, halting the micro-cracks that doom cheaper alternatives. We’ve engineered these for our foundry’s own proprietary heat-treating process so that even the biggest 120mm balls withstand 5-ton loads.

Ever consider the trade-offs? Yeah, they cost more initially, but the return on investment comes through in reduced replacements. One of our UAE clients, a medium-sized cement producer, dropped their annual media spend by 22% after they added our high-chrome forged balls. It wasn’t magic—just smart material science at work. What this means for you: pair these with appropriate liners (like high-chrome ones as well) for optimal lifespan. Not sure about compatibility? Our engineers offer a free, no-commitment inspection—give us your liner specifications, and we’ll map it out.

Cement Mill Applications

Down to business. In cement production, high chrome grinding media manufacturers cement mills have three concerns: raw grinding, finish grinding, and even coal grinding for kilns. Each has a special requirement, but the common thread is corrosion and heat resistance. Take raw milling, for instance: here, you’re blending limestone, clay, and iron ore into a slurry or dry feed. The abrasive mix calls for larger balls—80-120mm—to deal with coarse reduction. High chrome cast balls do the job with relish, their corrosion resistance shielding them from the wet, acidic environment. Cement optimization manuals make some recommendations based on equilibrium charges: a mix of ball sizes where high-chrome is dominant in the larger fractions to ensure even wear and power efficiency.

Finish grinding is where finesse counts. Clinker, gypsum, and slag are ground to 3,000-5,000 cm²/g Blaine fineness. Smaller high-chrome balls (40-60mm) now come into play, grinding finer with no excessive heat generation. Their toughness also resists over-grinding, which is a waste of energy. And in coal mills? most durable high chrome grinding balls for cement mills heat resistance ensures they remain intact in the midst of the dusty, flammable mayhem.

We’ve customized loads from Oman plants to Egypt plants, optimizing specific gravity feeds. A Jordanian plant with variable fineness switched to our zoned charging—bigger high-chrome balls at the start, smaller downstream. Result? 10% more yield and no contamination peaks. A testament that the optimum long-lasting grinding balls cement mill setup is not one size fits all. Is your mill compartmentalized? If so, pair high chromium balls for cement ball mills with each—coarse for the first, fine for the second. This lowers specific energy consumption by up to 5 kWh/ton. Practical tip: audit your charge every quarter. If wear’s uneven, time for a refresh.

Forged vs. Cast: Getting Through the High- Chrome Argument

The age-old showdown: forged or cast high chrome balls for cement grinding. Both have that chromium kick, but the manufacturing process divides them, affecting performance. Forged high chrome grinding balls start out as billets, heated and hammered under enormous presses. This tightens the grain structure, providing improved impact resistance—ideal for mills with high drop heights. They’re flawless, with fewer inclusions, leading to longer life when subjected to dynamic loads. Casting, on the other hand, entails pouring molten alloy into molds, freezing it into shape. That creates an even carbide distribution, which stands out in abrasion-heavy applications like finish grinding. Castings have an advantage when it comes to hardness, but forgings win the day in ductility.

From our foundry floor, we’ve seen forgings reduce breakage by 30% in raw mills, but casts are the outright winner on cost-effectiveness for large volumes. Alloy steel high chromium grinding balls wear has forgings as the first choice in corrosive slurries, but casts hold their own with quenching.

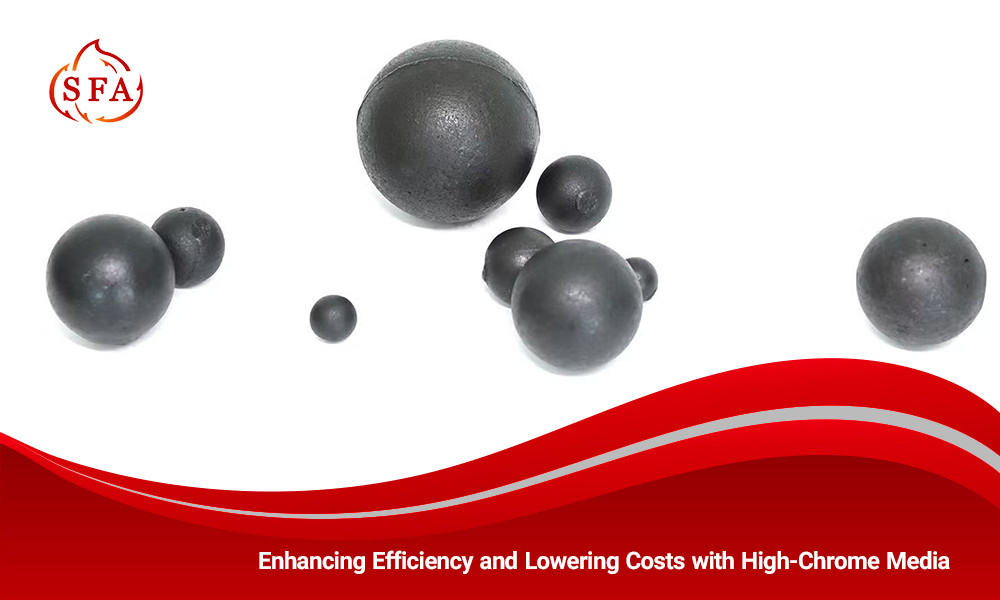

Enhancing Efficiency and Lowering Costs with High-Chrome Media

Efficiency isn’t just a buzzword; it’s the lifeline of cement ops. The most durable high chrome grinding balls for cement mills boosting efficiency and reducing costs? Absolutely. Their low breakage means stable milling dynamics, cutting power draw by optimizing load behavior. In one scenario, a client’s ball mill efficiency climbed 8% post-upgrade, thanks to better cascading. In terms of cost, the math is persuasive. While initial outlay is higher, the long life—up to 20,000 hours in optimum conditions—brings dividends. Less contamination means fewer rejects, and less wear results in less topping up. Those like ourselves at SFA who supply high chrome grinding balls for cement industry make it a point, sourcing alloys that hit the sweet spot.

Real-world win: our Egyptian partner reduced liner wear by 18% after changing to these balls, proving the right choice affects costs directly. What it means to you: calculate your overall cost of ownership, not just sticker price. Factor in downtime and energy. Need a customized ROI model? Our team builds them plant-specific to you—contact us.

Manufacturing Insights: Building Balls That Last

There is a strict procedure behind most durable high chrome grinding balls for cement mills. At SFA Foundry, we smelt alloy and scrap in electric arcs, refine to purity, and then cast or forge in controlled atmospheres. Heat treatment—quench and tempering—freezes in that martensitic structure, with chrome content verified by spectrometry. Sizes do matter: 20-50mm for fine grinding, 100-150mm for coarse. We tailor chromium levels—12% for general wear, 18%+ for extremely abrasive feeds. It is not factory-line drudgery; our engineers calibrate for your ore’s Bond Work Index. We drop-test for impact and tumble test for abrasion sims. That batch guarantees to ISO standards. For you in cement, that means consistent performance. Pro tip: store balls dry to avoid surface pitting. Questions about your process? Our experts are here.

Future-Proofing Your Mill: Selection and Maintenance Tips

In the future, Nano-alloys will bring high chrome grinding balls hardness and impact resistance to a new level, but today’s options are robust. Select based on: ore abrasivity (simulate with AI-based tools), mill speed, and fill ratio (aim for 30-40%). Maintenance? Monitor with vibration analysis; replace when 70% wear is reached. We’ve reached 25% media life extension for proactive customers with scheduled swaps. In short, the most durable high chrome grinding balls for cement mills are not a luxury—they’re a necessity. Based in Dubai, SFA Foundry stands ready to equip you. Not sure where to start? Send us your mill specs; we’ll chart the course to peak efficiency. Let’s build something lasting—contact us today.
