Cast Iron Grinding Balls
Cast iron grinding balls are an important part of power, cement production, and mining in the process of converting raw material to powders. Grinding balls, also referred to as heavy metal grinding balls, propel ball mills through material breakdown via impact and attrition. Renowned for their durability and cheapness, cast iron grinding balls like high chromium grinding balls and low chromium grinding balls are the central key to successful grinding. This article is going to focus on the composition, manufacturing, uses, advantages, and future of industrial grinding balls, particularly with regard to its role as a pillar of modern industrial activity.
What is Cast Iron Grinding Ball?
Cast iron grinding balls, also known as ball mill grinding media, are spherical components used to efficiently crush and grind materials in ball mills—cylindrical devices designed for particle size reduction. These grinding balls are typically made from iron alloys with additives such as chromium, manganese, or molybdenum to enhance hardness, toughness, and wear resistance. High-quality cast iron grinding balls ensure longer service life and improved grinding performance, making them essential for industries such as cement, mining, and mineral processing. Their primary function is to grind compounds like ores, cement clinker, or coal to a finer powder form, hence contributing largely to industries that require exact grinding.
For grinding balls in mining use, they break ores to release minerals like gold, copper, or iron. For cement grinding balls use, they grind clinker to create fine cement powder. They find applications in power plants, chemical facilities, and ceramics, where wear-resistant grinding balls are available for round-the-clock performance in harsh conditions.
Composition and Types
Quality is regulated by the microstructure and chemical structure of cast iron grinding balls. Such kinds of alloy grinding balls are normally manufactured by utilizing charged cast iron so that they would be hard and tough. The most important kinds are as follows:
1. High Chromium Grinding Balls
Consisting of 10-30% chromium, these chromium alloy balls are stronger (58-68 HRC) and wear-resistant, making them suitable to be utilized in abrasive operations like copper and gold mines. Their wear resistance reduces the replacement requirements, making grinding media for ball mills optimal.
2. Medium Chromium Grinding Balls
Made up of 3-7% chromium, these are mid-grade balls that balance performance and cost. They work in most cement grinding balls processes and less demanding mining processes, with hardness ranging from 50-58 HRC.
3. Low Chromium Grinding Balls
With 1-3% content of chromium, these are economic options for applications like grinding coal in thermal power plants. With a hardness of 48-55 HRC, these are appropriate for only softer materials and hence economic option for industrial grinding balls.
4. White Cast Iron Balls
These are feebly alloyed or unalloyed balls with high percentages of carbon content, being extremely hard but lower in toughness. Used where wear resistance is the greatest demand.
The choice of grinding media depends on the material, operating conditions in the mill, and price. High chromium grinding balls are best suited for abrasive applications, whereas low chromium grinding balls are produced for less severe applications.

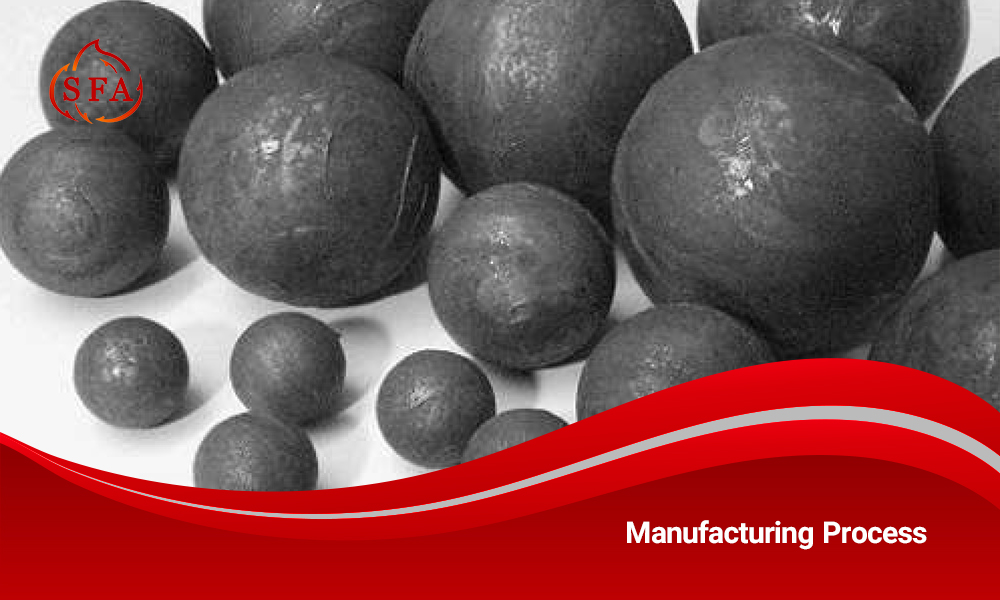

Manufacturing Process
The manufacturing process of cast iron grinding balls is complex and aimed at making them suitable as grinding media for ball mills. It involves a series of steps, which are all referred to as grinding ball manufacturing:
1. Raw Material Procurement
Good quality scrap iron, ferroalloys (ferrochrome), and material with carbon content are chosen for procuring the desired alloy composition. Grinding balls in an alloy cannot eliminate this step in order to achieve the best hardness and toughness.
2. Melting
Raw materials are melted in electric arc or induction furnaces at a temperature above 1,500°C, producing a clean homogeneous molten alloy.
3. Casting
Molds are filled with liquid metal to produce round industrial grinding balls. Two potential methods:
- Sand Casting: Inexpensive but may have trace surface defects.
- Metal Mold Casting: More accurate and smoother finish, which is an advantage for performance enhancement when using ball mill grinding media.
4. Heat Treatment
The balls are quenched and tempered after casting to enhance their microstructure. Hardness is caused by quenching, and lossless hardness reduction is created through tempering in an effort to achieve the optimal balance in the case of wear-resistant grinding balls.
5. Quality Control
Rigorous testing, such as Rockwell hardness testing, drop testing, and metallographic testing, assures that the balls conform to industry standards in grinding ball manufacturing.
This manufacturing process produces cast steel balls or cast iron grinding balls of uniform hardness, high wear resistance, and low breakage rates, designed for harsh milling environments.
Uses in All Industries
Cast iron grinding balls find application in all industries with unique grinding media attributes:
1. Mining
Mining grinding balls crush ores like gold, copper, and iron. High chromium grinding balls are employed because of their ability to resist abrasive ores, increasing milling efficiency and reducing wear.
2. Production of Cement
Grinding balls for cement grind clinker and additives like gypsum to create fine powder cement. Medium chromium grinding balls and low chromium grinding balls are typically employed since the used materials are softer.
3. Power Generation
In coal-based power plants, industry grinding balls grind coal into powder so that the coal can be burned efficiently. Low chromium grinding balls are normally sufficient for the purpose.
4. Chemical and Ceramic Industries
These industries use ball mill grinding media in order to have fine powders for chemical reaction or as ceramic material, where precision is of the utmost importance.
Diameter of cast iron grinding balls (8mm to 150mm) and chrome content are chosen based on mill size, material type, and desired particle size. The larger alloy grinding balls impart more impact for coarse grinding, while the smaller ones are optimal for fine grinding.
Advantages of Cast Iron Grinding Balls
Cast iron grinding balls possess several advantages that make them favorite among grinding media. These advantages are:
1. Cost-Effectiveness
Of forged vs cast grinding balls, low chromium grinding balls are cost-effective and well developed for high-consumption applications like cement production.
2. High Wear Resistance
Chromium combined with other alloying elements provides high wear and tear resistance to the balls, making them more durable and cost-effective for grinding ball suppliers.
3. Flexibility
Having various chromium content and diameters, cast steel balls can be customized to the use from abrasives ores to soft materials.
4. Consistent Performance
Mass production of grinding balls to specification ensures consistent hardness and microstructure, which translates into consistent performance in uses of ball mill grinding media.
5. Recyclable:
Made of recyclable material, industrial grinding balls are eco-friendly, a point that will be appealing to companies ready to embrace green management.
Cast iron grinding balls, however, are not as resilient as forged steel balls, thus fracture more in impact conditions. This is compensated for by using suitable chromium composition and heat treatment for wear-resistant grinding balls.

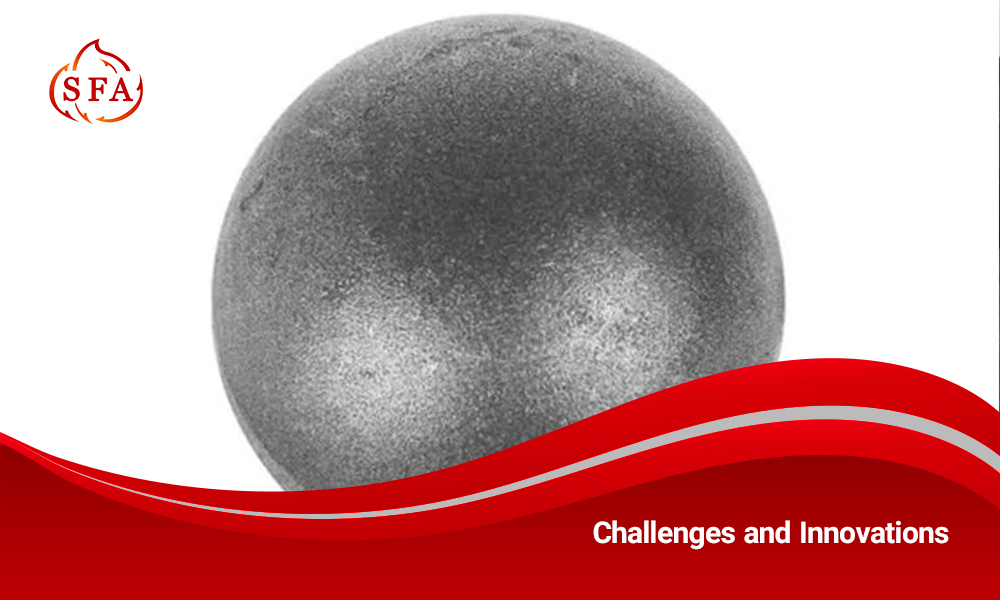

Challenges and Innovations
One of the most critical concerns in ball grinding production is achieving hardness-toughness balance. Although higher hardness promotes wear resistance, it also increases brittleness, leading to breakage during mills of high impact. The makers counteract this by paying attention to alloying and employing advanced heat treatment for chromium alloy balls. Another area of concern is the eco-footprint of the manufacture of cast iron grinding balls, with carbon-generating melting and casting as emitting sources. Certain grinding ball suppliers are looking to energy-saving furnaces and clean energy in a bid to reduce their footprint.
Innovations are resulting in improvements in grinding media performance. New alloy compositions further enhance toughness without hardening and computer-aided casting technology increases accuracy and reduces defects. Composite alloy grinding balls of cast iron and other materials are also under study for the aim of further improving performance. SFA is one of the biggest pioneers casting industries company that is capable of simultaneously melting 20000kg in a 25000 square meter facility and has an annual production capacity of 25000 tons cast components.
Future Trends
The future for cast iron grinding balls is characterized by business needs and technological progress. Key trends are:
1. Sustainability
Manufacturers of ball mill grinding media are environmentally conscious in their processes, such as the utilization of recycled material and renewable energy, to produce grinding balls.
2. Smart Grinding Media
Emerging technologies have the ability to embed sensors in ball mill grinding media to monitor wear and performance in real-time, enabling improved mill performance.
3. Customized Alloys
Technological leaps are enabling the manufacture of customized alloy grinding balls for specific applications, maximizing efficiency at reduced costs.
4. Automation
Automated production and advanced quality control are enhancing the uniformity of cast steel balls to suit the needs of modern industries.
These technological developments are focusing the limelight on cast iron grinding balls, with smarter and lower-environmental-impact industrial grinding.
Conclusion
Cast iron grinding balls, like high chromium grinding balls, mild chromium grinding balls, and other alloy grinding balls, are of critical use to the mining, cement, and power industries. They are economic, long lasting, and adaptable, and hence critical as ball mill grinding media. With precise grinding balls production, the balls meet the rigorous requirements of industrial milling. However, green production and smart grinding media technologies are around the corner, cast iron grinding balls will continue to be at the foundation of grinding raw materials into the products, which power our world. SFA is here to leverage advanced technical expertise with over three decades of experience to produce high quality industrial steels and cast iron various applications. Contact us in sepahan foolad atashgah for more details and expertise advice.
