What makes a ball mill grinder more efficient?

At SFA Foundry, based in the heart of Dubai’s industrial hub, we’ve spent years helping cement, mining, and pharmaceutical plants across the UAE and beyond maximize their grinding operations. Ball mill grinder efficiency isn’t just about running equipment faster—it’s about smarter choices that cut energy costs, reduce wear, and boost throughput. From grinding cement clinker to fine powders for pharmaceutical use, small changes in how you operate your ball mill can be very costly. In this article we discuss the primary drivers of ball mill efficiency, drawing on industry knowledge and experience at SFA Foundry. We will also give you advice and real-world examples to help you maximize ball mill  grinder efficiency and ensure smooth operations.

Understanding Ball Mill Efficiency

A ball mill is a workhorse for cement, mining, and ceramics industries, grinding raw materials into fine powders. But efficiency—maximizing output and reducing energy and wear—is not a guarantee. It depends on a mix of equipment design, operating know-how, and material choice. So, why does a ball mill hum along efficiently? Let’s dissect this, drawing on the expertise of reliable sources such as 911Metallurgist, Precise Ceramic, and Xinhai Mining, with our own hands-on experience interwoven.

1. Optimize Mill Geometry and Speed

The geometry of your ball mill—its diameter, length, and speed—forms the basis of efficiency. Large-diameter mills (around 4 meters or less) are more effective at grinding due to having more impact energy, according to 911Metallurgist. Length-to-diameter ratio is also critical: the ratio should be evenly balanced so material moves smoothly and doesn’t clog. Speed is also critical for ball mill  grinder efficiency. Mills usually function at 60-80% of critical speed, at which balls cataract or cascade, maximizing grinding impact. Too high, and balls become wedged into the walls, dissipating energy. At SFA Foundry, we just assisted a cement factory in Sharjah to run their mill at 85% of critical speed. We had our experts put it back to 75%, and throughput increased by 12% without increasing power draw. Compare the speed of your mill to its critical speed (use formula: Critical Speed = 76.6 / √D, where mill diameter in meters is D). If in doubt, our Dubai-based specialists can review your setup for best ball mill design parameters. Just get in touch!

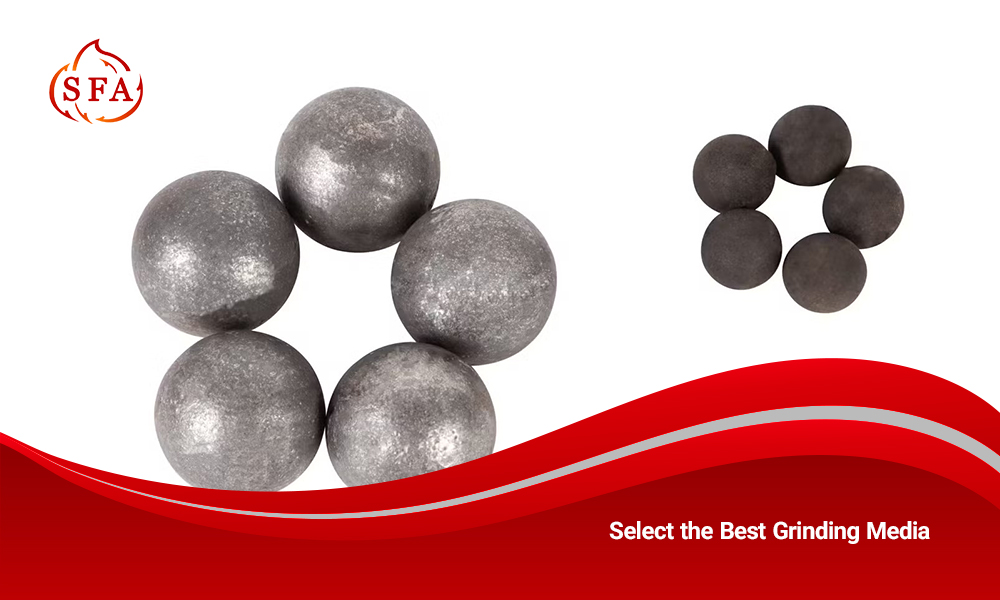

2. Select the Best Grinding Media

Grinding media—those balls or cylpebs within the mill—are the essence of the grinding operation. As Precise Ceramic explains, media size, shape, material, and density all directly influence ball mill  grinder efficiency. Large balls (50-90 mm) work wonderfully for coarse grinding in cement or mining, while finer balls (10-30 mm) are ideal for fine grinding for pharma. The material also matters: high-chrome steel balls are durable and cost-effective for cement, but zirconium oxide balls are better for contamination-free grinding in pharma.

One of our UAE cement plant customers reduced liner wear by 18% when they switched to high-chrome forged balls from SFA Foundry. The switch also saved them 8% in energy use as the heavier media provided more impact per revolution. Don’t know whether steel or ceramic balls will work for your process?  Our engineers can rapidly conduct a compatibility test—just share your mill data with us.

Optimize media size based on your target particle size and ensure the material is suitable for your industry (e.g., ceramics for cleanliness, steel for strength).

3. Refine Feed Composition

The material hardness, size, and moisture significantly affect ball mill  grinder efficiency. Mining Doc notes that decreasing the feed size reduces energy consumption because crushing is less energy intensive than grinding. Wet milling involves utilizing a slurry of 60-80% solids by weight to prevent accumulation of sticky material and operate efficiently in the mill. Harder ores, like those used in gold mining, are more energy intensive, so pre-treatment (heating or chemical treatment) can enhance grindability. An Omani gold mining customer visited us with variable production. Our engineers discovered their feed was too coarse and overloaded the mill. By adding a pre-crusher to grind feed size to below 10 mm, ball mill throughput increased by 15%. Check your feed’s grindability (e.g., by using Bond’s Work Index) and optimize crushing stages to achieve best feed size.

If you’re in the UAE, our SFA Foundry experts can analyze your feed composition—just reach out!

4. Master Operating Conditions

How you run your mill day-to-day can make or break efficiency. Xinhai Mining emphasizes such factors as ball filling ratio (45-50% of the volume), pulp density (75-85% for coarse, 65-75% for fine), and operator proficiency. Over-balling reduces grinding capacity, and under-balling reduces impact energy. Skillful operators also prevent over-grinding, which is energy-inefficient and makes particles too small.

Our Dubai specialists recently helped an Abu Dhabi ceramics plant that was having an issue with over-grinding. By fine-tuning ball filling to 48% and educating their operators in real-time measurement, we saved energy costs 10% and improved particle size management. Check ball filling and slurry density on a regular basis, and make a commitment to operator training. Don’t know where to start? SFA Foundry specialists can provide on-site training tailored to your mill.

5. Leverage Closed-Circuit Grinding

Running your ball mill in closed circuit with a classifier, as addressed by ScienceDirect, achieves the highest efficiency through less over-grinding. The classifier separates fine particles and returns coarse particles to further grinding. This creates a tighter particle size distribution and maximizes ball mill  grinder efficiency. Higher circulating loads (recycled product) do have the capability to subject material handling systems to too much stress, however, so be balanced. A Dubai client for cement changed to a closed-circuit setup with our advice, raising production by 20% while keeping uniform fineness. Interested in knowing if closed-circuit grinding is suitable for your installation? Talk to our SFA Foundry experts for a feasibility analysis—we will evaluate your mill capacity and material flow.

6. Address Material Properties and Wear

The ore or material you’re grinding—its hardness, toughness, and abrasiveness—directly impacts ball mill wear reduction and efficiency. Harder materials like quartz increase wear on liners and media, raising costs. Retsch notes that choosing the right liner material (e.g., rubber for abrasive ores, steel for less abrasive ones) and media can extend component life. Pre-treating tough ores, like heating or chemical leaching, can also make them easier to grind.

One of our Fujairah mining customers was seeing excessive liner wear from abrasive silica ore. We recommended high-chrome liners and optimized media size, saving replacement cost by 22%.

Match media and liners to the characteristics of your material. If you’re unsure, our Dubai-based SFA Foundry can recommend solutions for your type of ore.

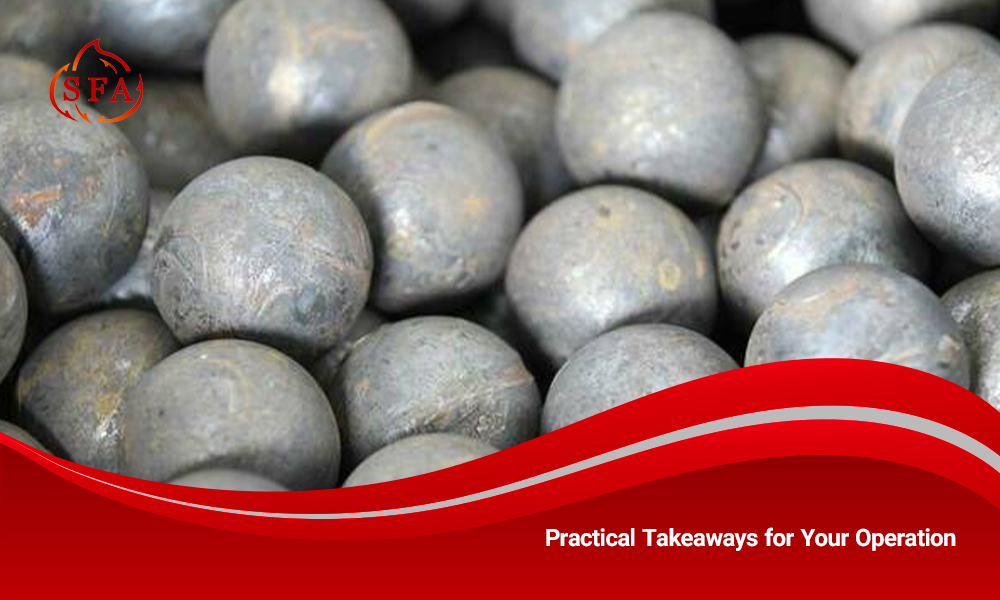

Practical Takeaways for Your Operation

So how do you apply these lessons to your plantand increase ball mill  grinder efficiency? Here’s a short checklist from our experience at SFA Foundry:

• Audit Mill Speed: Ensure it’s 60-80% of critical speed for optimal grinding motion.
• Select Media Wisely: Use high-chrome steel for cement, zirconium oxide for pharma. Ball size should be appropriate to your target particle size.
• Optimize Feed: Pre-crush feed to below 10 mm and maintain 60-80% solids for wet grinding.
• Train Operators: Qualified operators avoid over-grinding and keep optimal ball filling (45-50%).
• Mind Closed Circuits: In the event of high throughput as a priority, a classifier can save energy wastage.
• Wear Less: Opt for wear-resistant liners and media on abrasive ores to reduce maintenance expenses.

Still wondering how to start? Our Dubai-based grinding media specialists have helped over 50 plants in the Middle East optimize ball mill performance. Share your mill specs with us, and we’ll provide a tailored efficiency plan.

Conclusion

Powering Up Your Ball Mill At SFA Foundry, we believe that ball mill grinder efficiency is more than just technical modifications—it’s about understanding your individual needs, whether you’re in cement production in Dubai, gold mining in Oman, or ceramics in Abu Dhabi. By focusing on mill design, grinding media, feed optimization, operating conditions, closed-circuit systems, and material properties, you can reduce energy costs, reduce wear, and boost throughput. Our employees have seen it happen: A Sharjah cement factory saved 12% of energy, and a Fujairah mine saved 22% of liner costs. These’re not flag wavings—they’re reality that indicates incremental change equals big impact. Ready to grind smarter, not harder? Visit [sfa-foundry.com) or contact us for a free consultation. Do you need high-chrome balls, liner recommendations, or an efficiency analysis? Our technical specialists can help you grind smarter, not harder.
